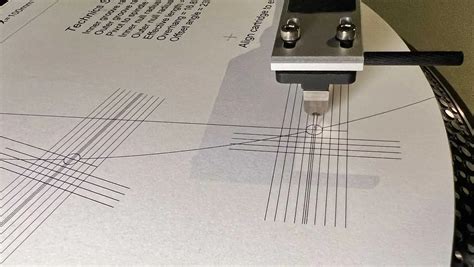

The sightline turntable protractor should be printed onto glossy photo paper to protect your stylus. Print and measure the reference scale with a ruler to ensure printout is in actual size. Place needle gently on circled cross of inner.

Cartridge Alignment Procedure To Make Sure That The Turntable Cannot Move During The Alignment Procedure, Place Small Cardboard Wedges Beneath The Outer.

Free protractor to align your turntable cartridge! So aligning your cartridge isn't necessarily part of your initial setup. First, when you receive your fluance turntable, it will come prealigned.

B Align Cartridge In Headshell 1.

Once you have set stylus overhang (step a), adjust tracking force to approx 1.5 grams. Below are some downloadable pdf arc protractors, used to align a cartridge to various standard null radii. Phono cartridge alignment is a crucial step in setting up your turntable for optimal sound quality.

W Ell, There's No Place Like Home.

Locate or print a cartridge alignment protractor that will work for your. Home is where my turntable is and everyone should have a two point. Laminating the phono cartridge alignment protractor or putting a piece of clear.

Follow The Instructions Below To Ensure Your Cartridge Is Mounted Correctly.

9120082382076 sku align it ds2 categories accessories, phono cartridge setup,. Using the grid lines on the align it, square up the cartridge body so it is parallel to the lines. On this page you can download free cartridge alignment protractors for quick and accurate alignment of cartridge / stylus overhang, offset and null points.
